Slotted
Bookshelf

Year 2023
My Role Solo: Concept, CAD, Fabrication, Documentation
Tools CAD · Laser Cutter · Technical Drawing
Fabrication Product Design CAD

Overview

Build a shelf that can be easily assembled without the use of any adhesives, nails, screws, clips, or other fasteners, with a minimum holding weight of 200 lbs. This simple bookshelf accomplishes all that and more with an easy-to-follow instruction manual.

The final design holds over 300 lbs, enough for both you and your books. All pieces slot together using precisely cut joints, making the shelf fully tool-free to assemble and disassemble.

Slotted Bookshelf final product

Sketches & References

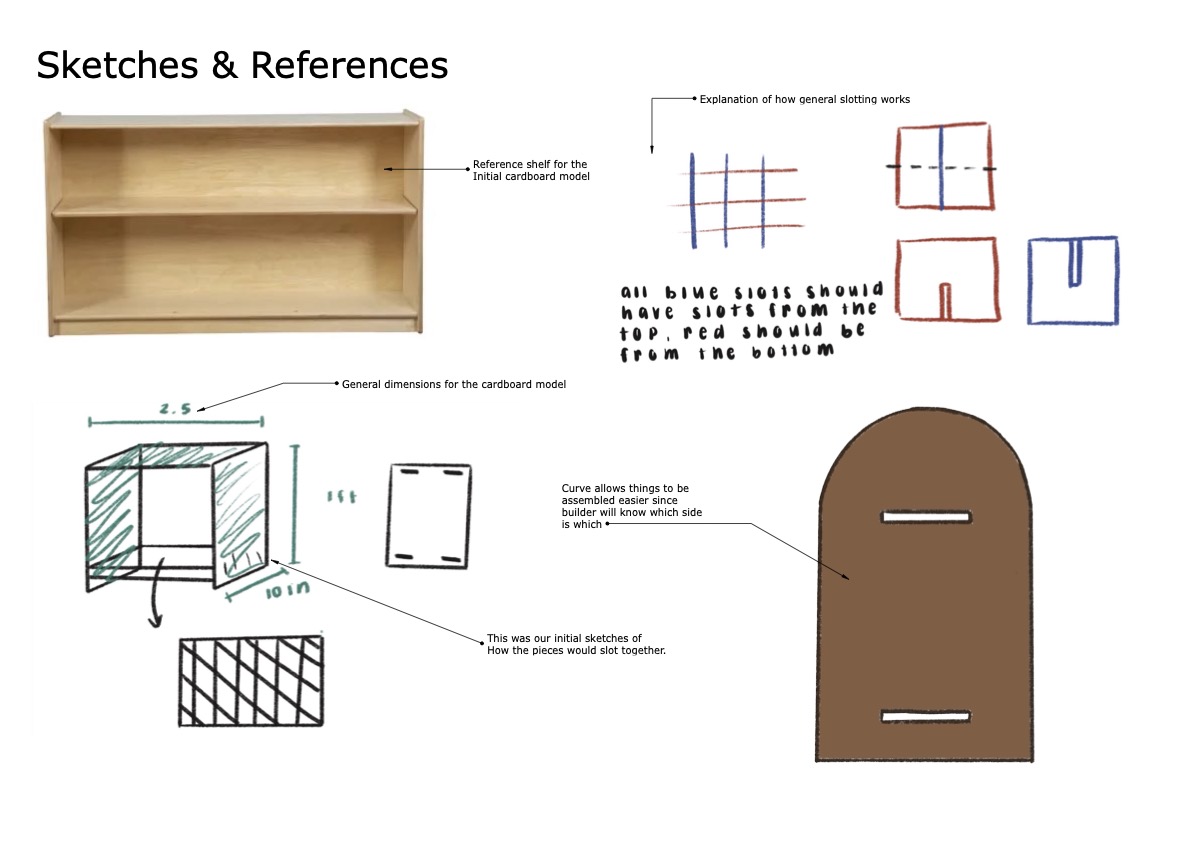

Sketches and references page 1

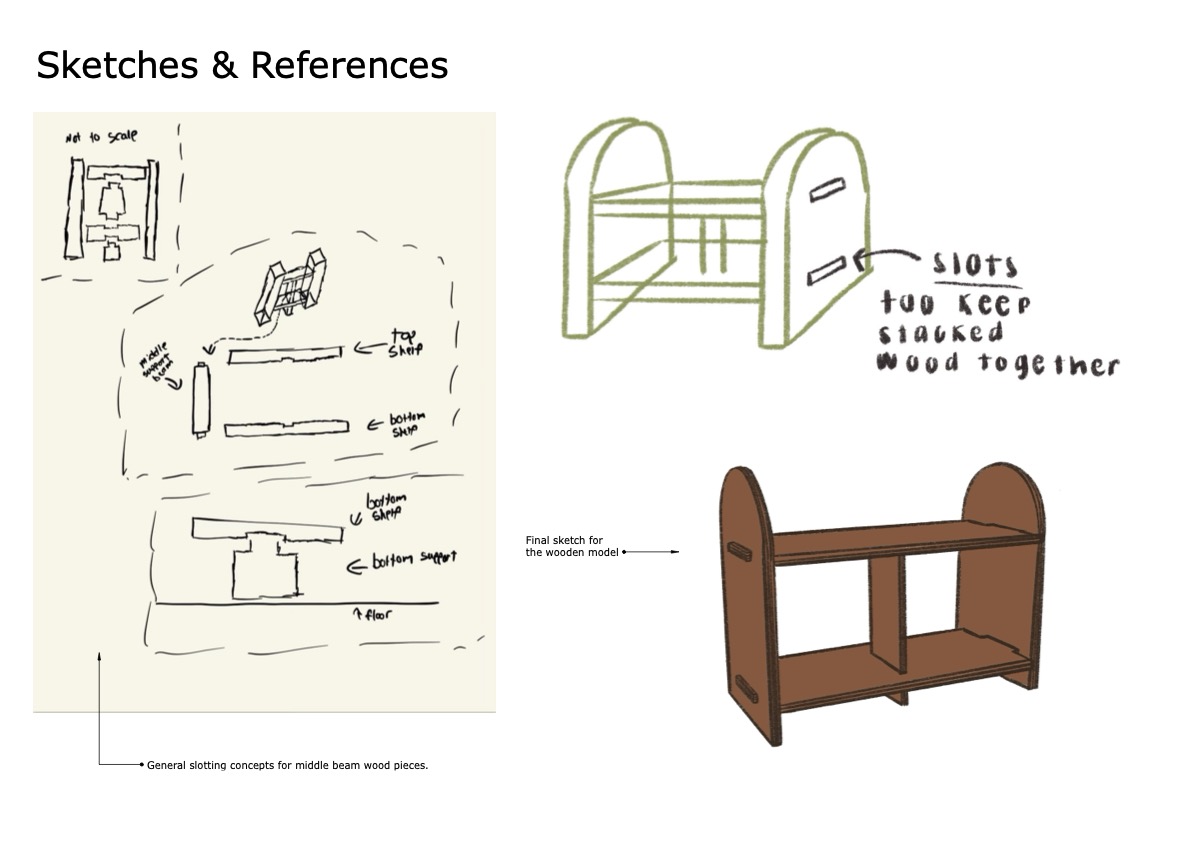

Sketches and references page 2

Orthographic Views

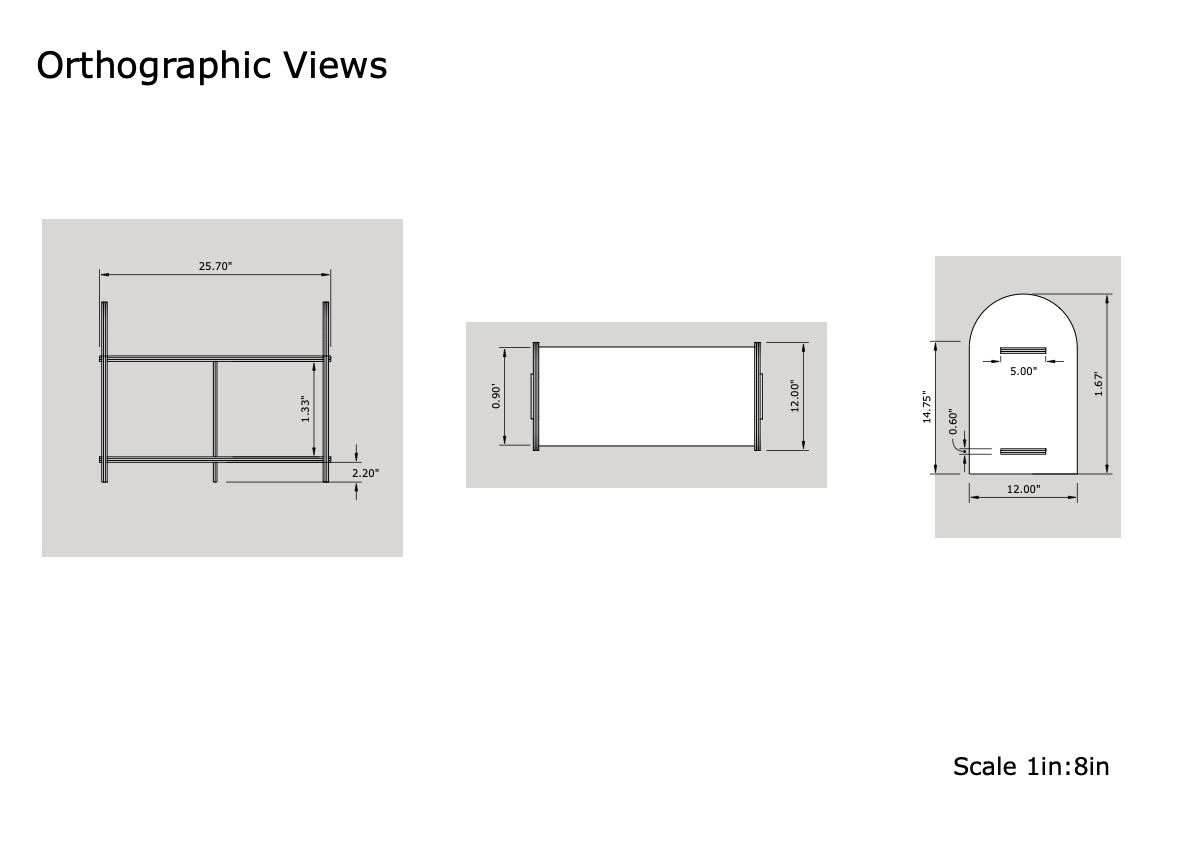

Orthographic view page 1

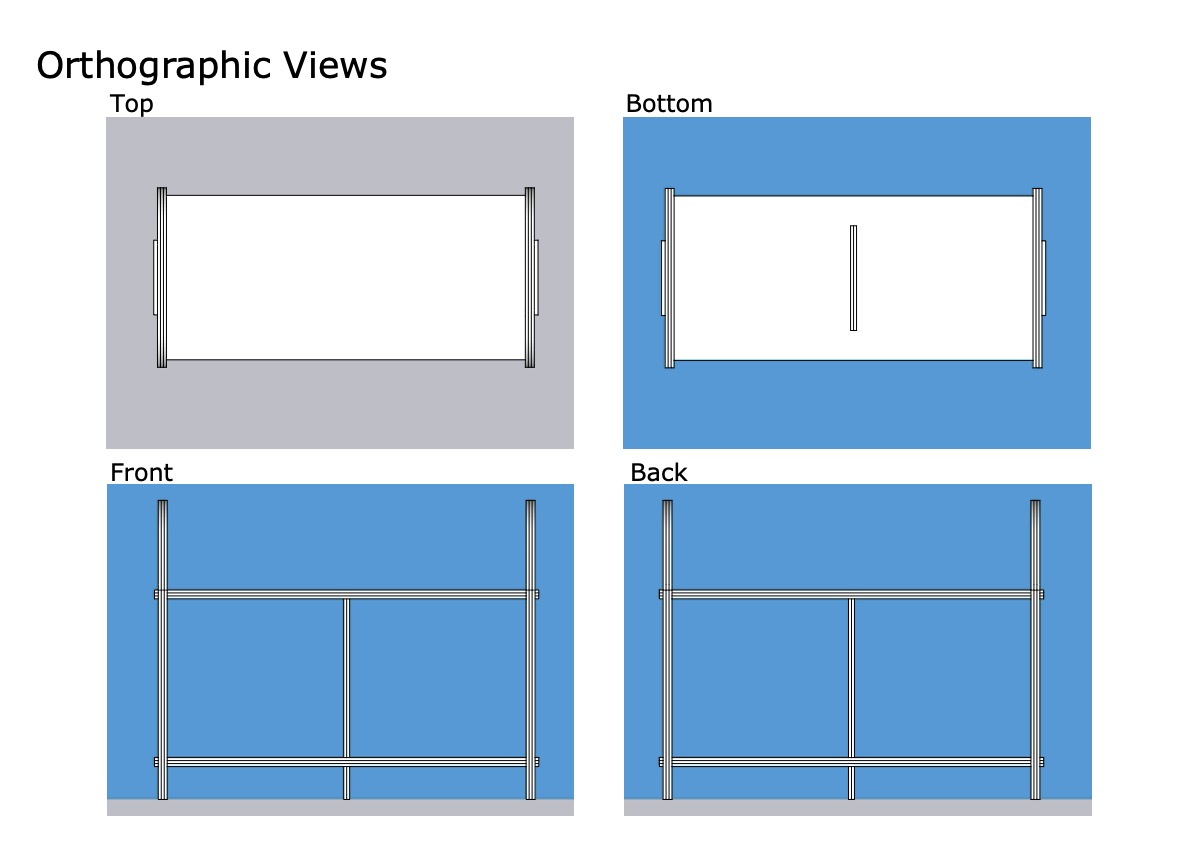

Orthographic view page 2

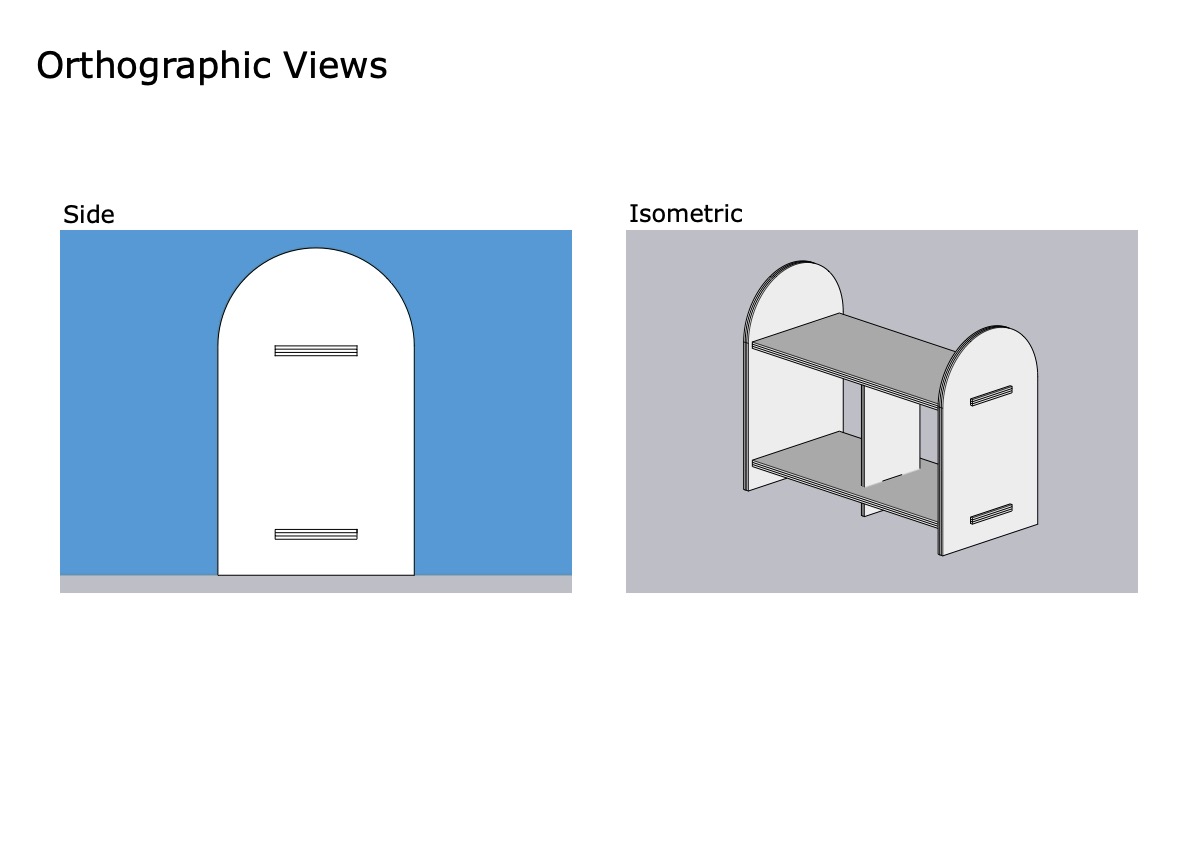

Orthographic view page 3

Perspective Views

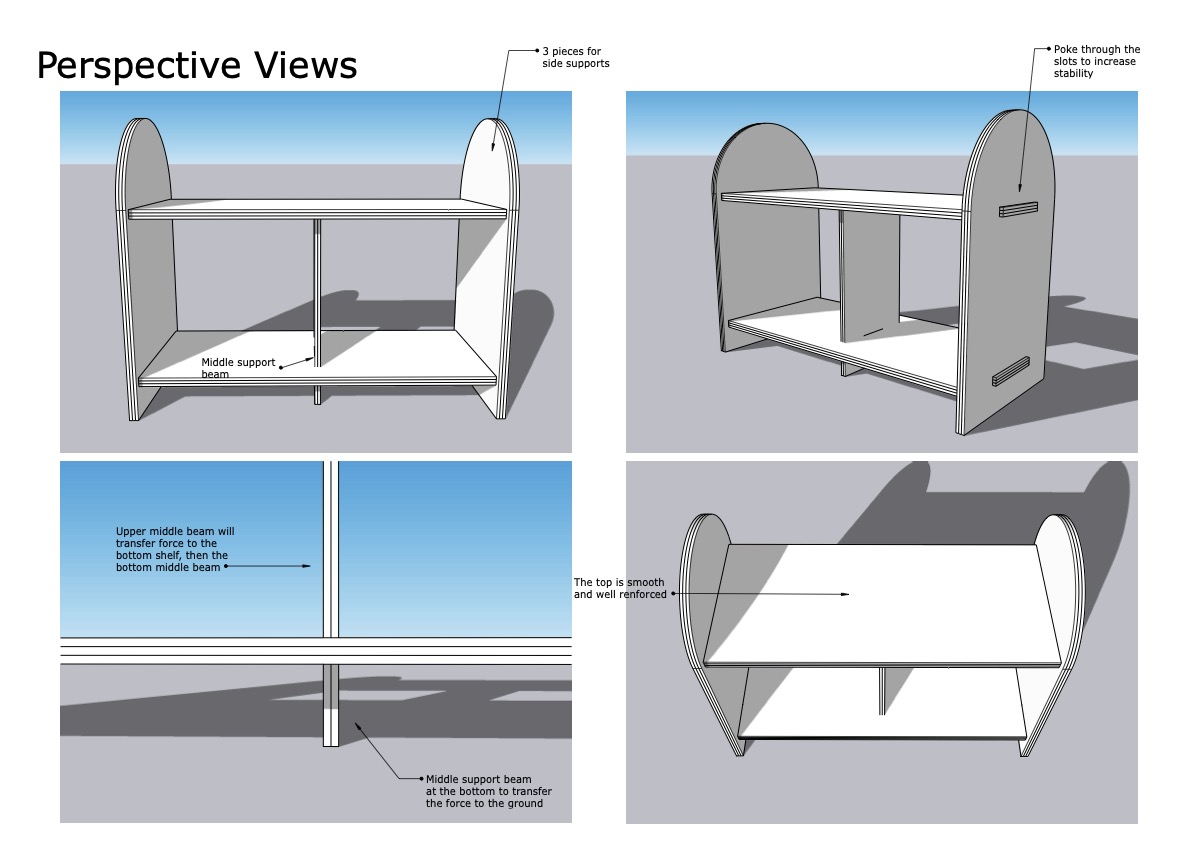

Perspective view page 1

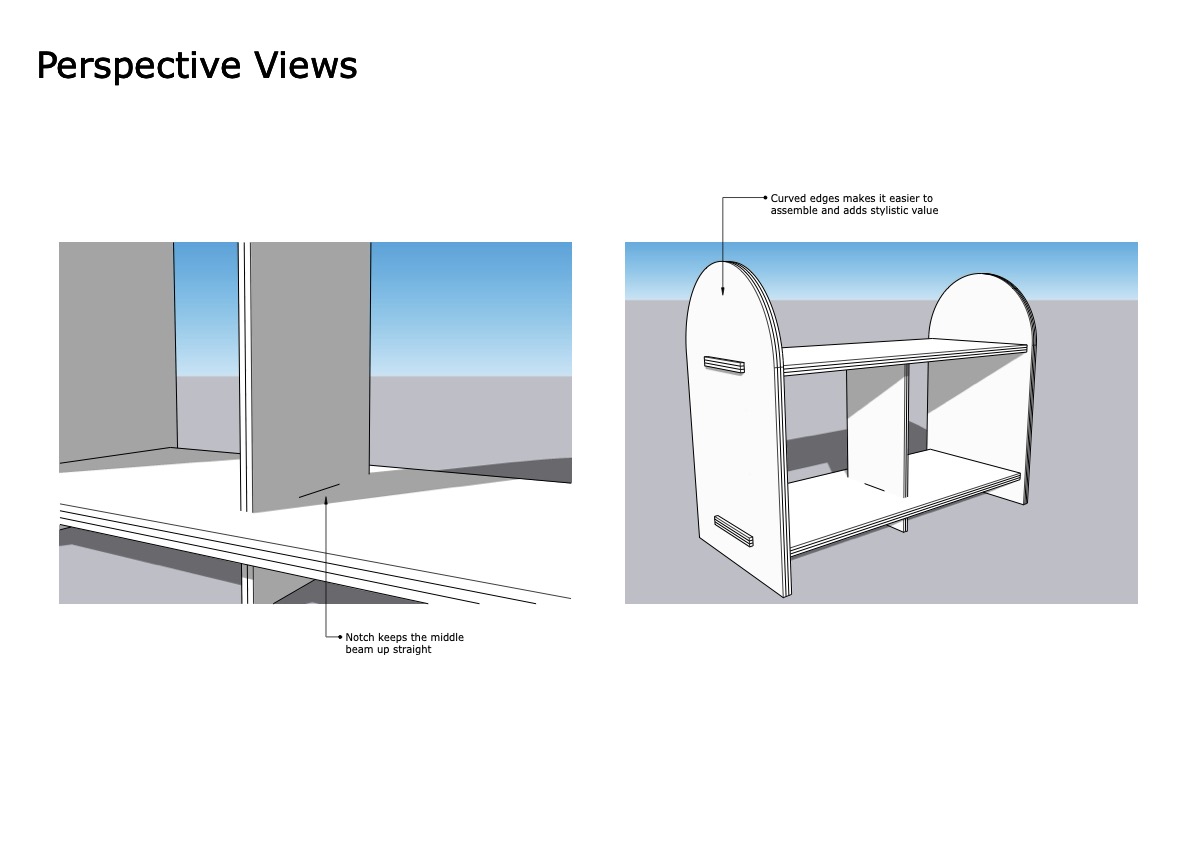

Perspective view page 2

Photos

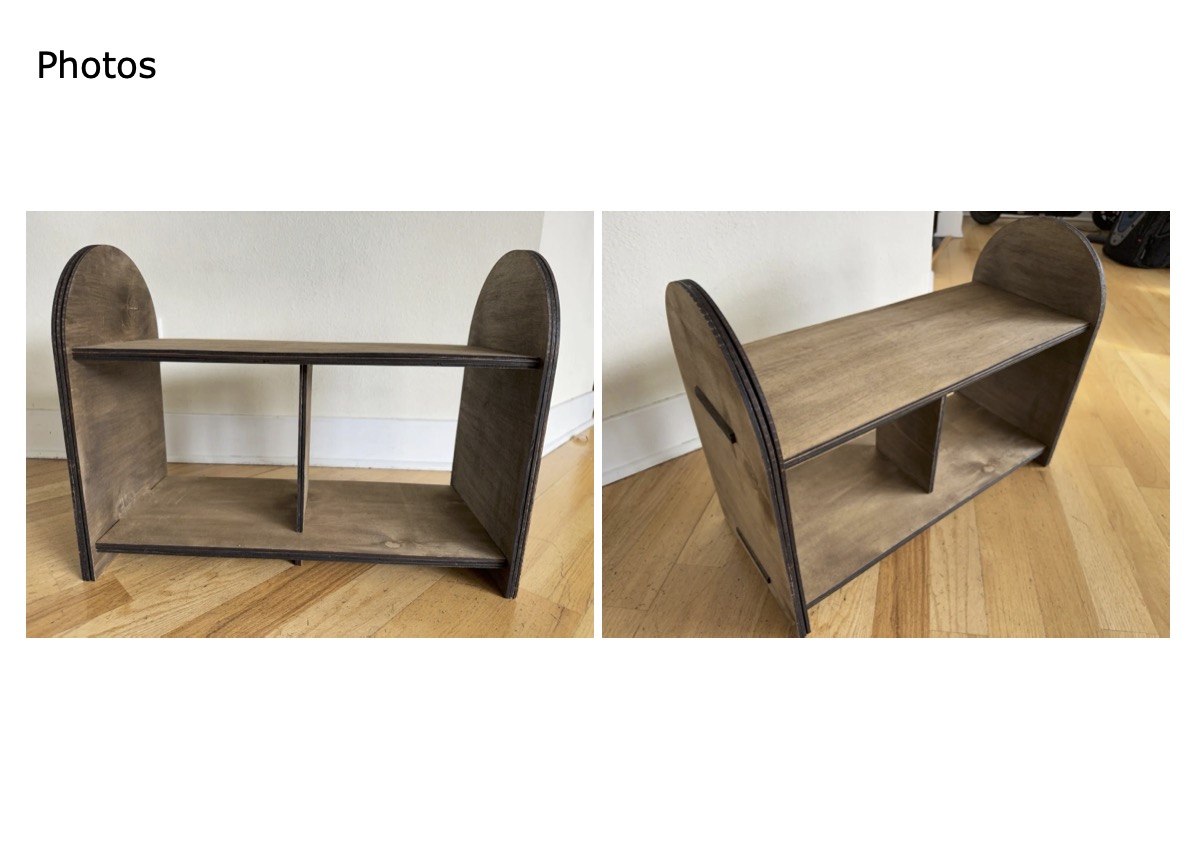

Photo page 1

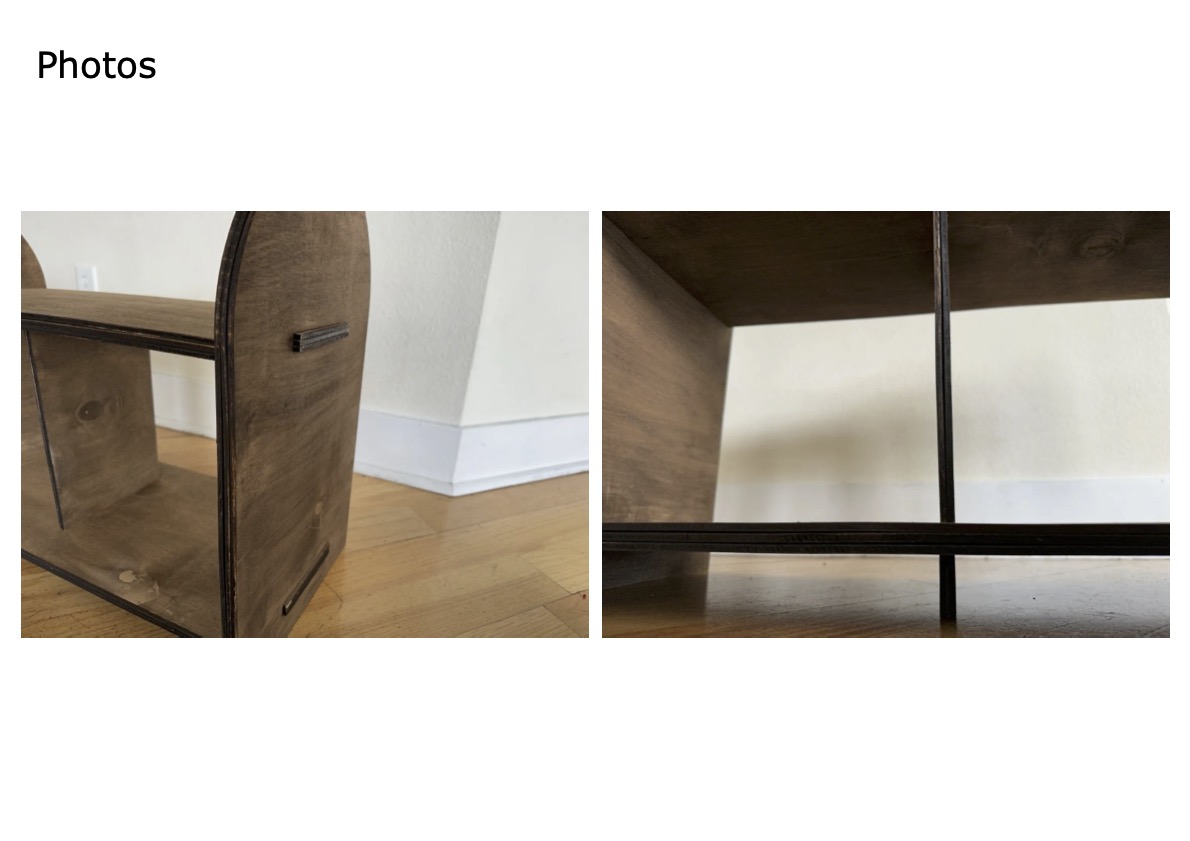

Photo page 2

Instructions

Downloads
